 Connex Connector Product Specification Sheet
Part Number Add part number 112379 to your Quote. 112379
Family/Series: BNC Coaxial Connectors
Product Type: Clamp Attachments for Flexible Cable
Description: Straight Clamp Jack - Captive Contact

Specifications
Electrical
Cable Group 04    Cable Types: 59 / U PLENUM
Finish Nickel
Insulation Teflon
Impedance 75 ohms
Crimp Tool N/A

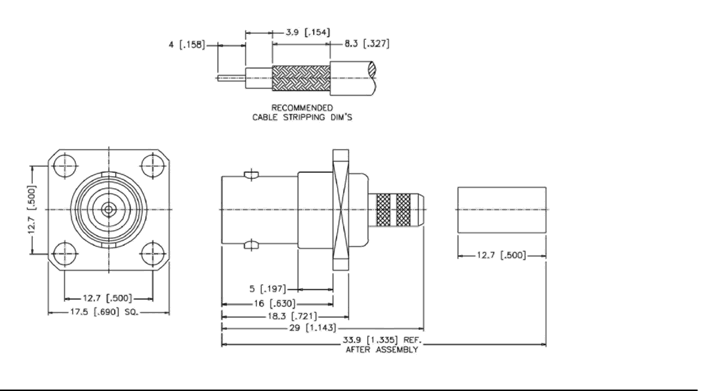

Schematic Drawing
Connex part number 112379 schematic
