 Connex Connector Product Specification Sheet
Part Number Add part number 112376 to your Quote. 112376
Family/Series: BNC Coaxial Connectors
Product Type: Clamp Attachments for Flexible Cable
Description: Straight Clamp Jack - Captive Contact

Specifications
Electrical
Cable Group 02    Cable Types: LMR200 / B7807A
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

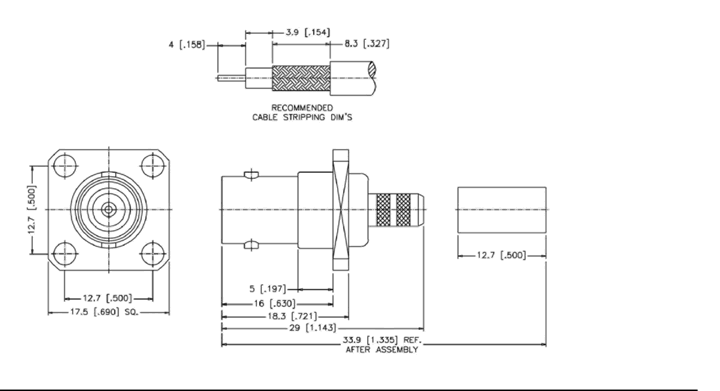

Schematic Drawing
Connex part number 112376 schematic
