 Connex Connector Product Specification Sheet
Part Number Add part number 112374 to your Quote. 112374
Family/Series: BNC Coaxial Connectors
Product Type: Clamp Attachments for Flexible Cable
Description: Straight Clamp Jack - Captive Contact

Specifications
Electrical
Cable Group 03    Cable Types: 59 / 62 / 140 / 210
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

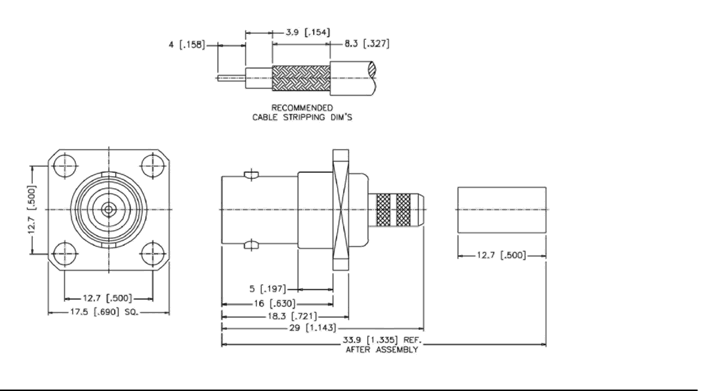

Schematic Drawing
Connex part number 112374 schematic
