 Connex Connector Product Specification Sheet
Part Number Add part number 112358 to your Quote. 112358
Family/Series: BNC Coaxial Connectors
Product Type: Clamp Attachments for Flexible Cable
Description: Right Angle Clamp Plug
Brass Shell

Specifications
Electrical
Cable Group 03    Cable Types: 59 / 62 / 140 / 210
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool N/A

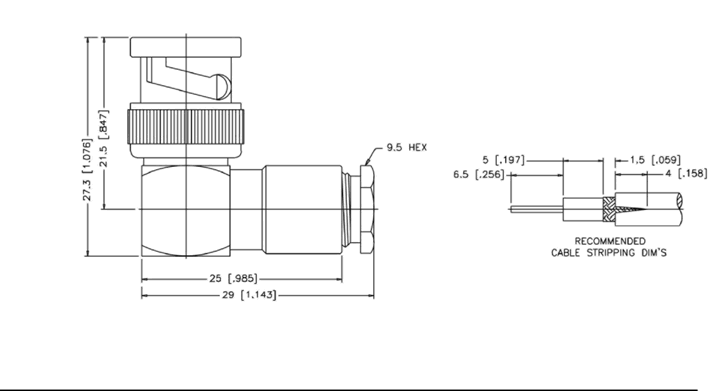

Schematic Drawing
Connex part number 112358 schematic
