 Connex Connector Product Specification Sheet
Part Number Add part number 112352 to your Quote. 112352
Family/Series: BNC Coaxial Connectors
Product Type: Clamp Attachments for Flexible Cable
Description: Straight Clamp Plug - Captive Contact
Diecast Shell

Specifications
Electrical
Cable Group 01    Cable Types: 58 / 58A / 58C / 141 / 303 / UMR195 / B7806A
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool N/A

Remark:  UG-88/U, UG-260/U

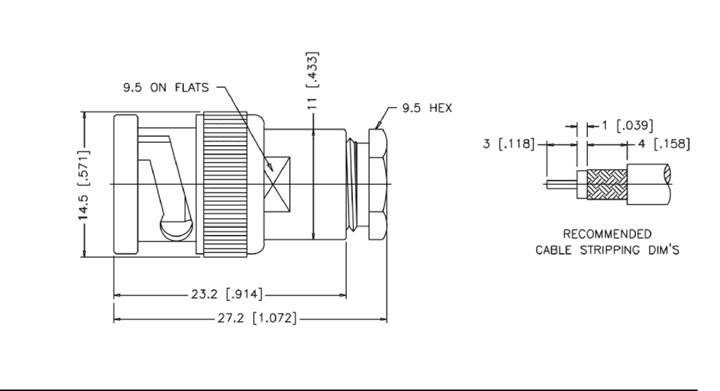

Schematic Drawing
Connex part number 112352 schematic
