Connex Connector BNC Type RF Coaxial Connector part number 112300

Part Number	112300
Family/Series:	BNC Coaxial Connectors
Product Type:	Twist-On Attachments for Flexible Cable
Description:	Twist-On Plug Diecast Shell

Specifications

Electrical

Cable Group

01 Cable Types: 58 / 58A / 58C / 141 / 303 / UMR195 / B7806A

Finish

Nickel

Insulation

Delrin

Impedance

50 ohms

Crimp Tool

N/A

Remark:

Only for solid center conductor cable

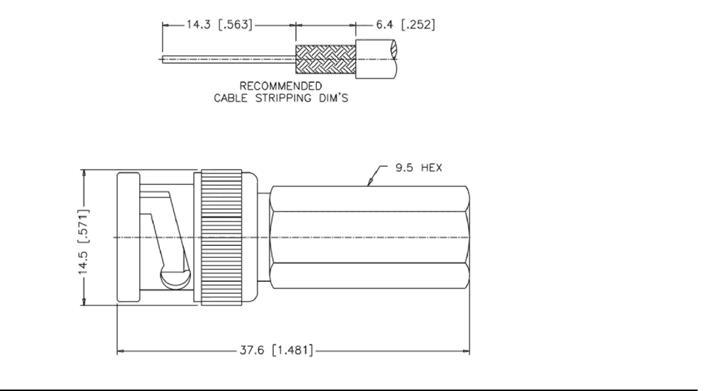

Schematic Drawing

Connex part number 112300 schematic
