 Connex Connector Product Specification Sheet
Part Number Add part number 112280 to your Quote. 112280
Family/Series: BNC Coaxial Connectors
Product Type: Panel Jack Crimp Attachments for Flexible Cable/Receptacle
Description: Panel Crimp Jack - Plenum Cable
Teflon/Captured

Specifications
Electrical
Cable Group 02    Cable Types: LMR200 / B7807A
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool A

Remark:  5.0 [.197] Max. panel thickness

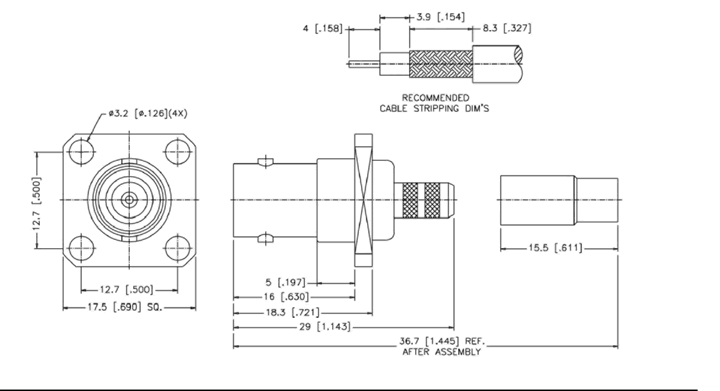

Schematic Drawing
Connex part number 112280 schematic
