 Connex Connector Product Specification Sheet
Part Number Add part number 112274 to your Quote. 112274
Family/Series: BNC Coaxial Connectors
Product Type: Panel Jack Crimp Attachments for Flexible Cable/Receptacle
Description: Panel Crimp Jack - Standard Cable
Teflon/Captured

Specifications
Electrical
Cable Group 03    Cable Types: 59 / 62 / 140 / 210
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool A

Remark:   5.0 [.197] Max. panel thickness

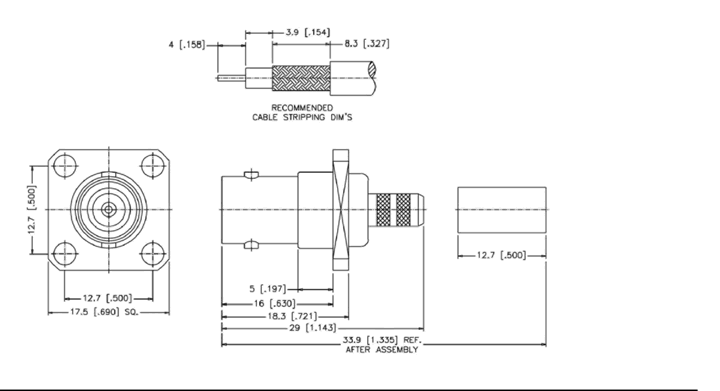

Schematic Drawing
Connex part number 112274 schematic
