 Connex Connector Product Specification Sheet
Part Number Add part number 112252 to your Quote. 112252
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible Cable
Description: Bulkhead Isolated Crimp Jack - Miniature Cable

Specifications
Electrical
Cable Group 05    Cable Types: 174 / 188A / 316 / B7805A
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool B

Remark:   6.0 [.236] Max. panel thickness

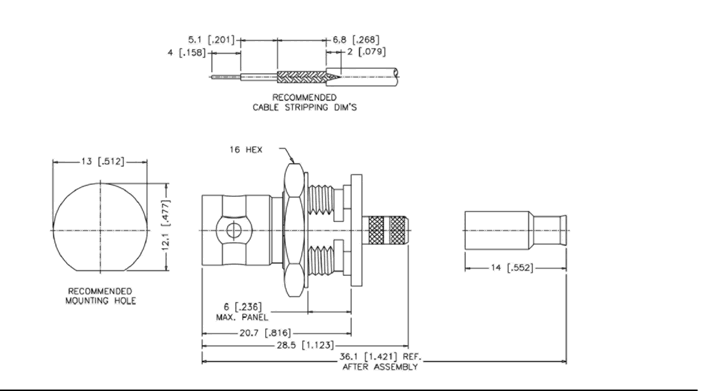

Schematic Drawing
Connex part number 112252 schematic
