 Connex Connector Product Specification Sheet
Part Number Add part number 112247 to your Quote. 112247
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible Cable
Description: Bulkhead Isolated Crimp Jack - Plenum Cable
Teflon/Captured

Specifications
Electrical
Cable Group 04    Cable Types: 59 / U PLENUM
Finish Nickel
Insulation Teflon
Impedance 75 ohms
Crimp Tool A

Remark:   6.0 [.236] Max. panel thickness

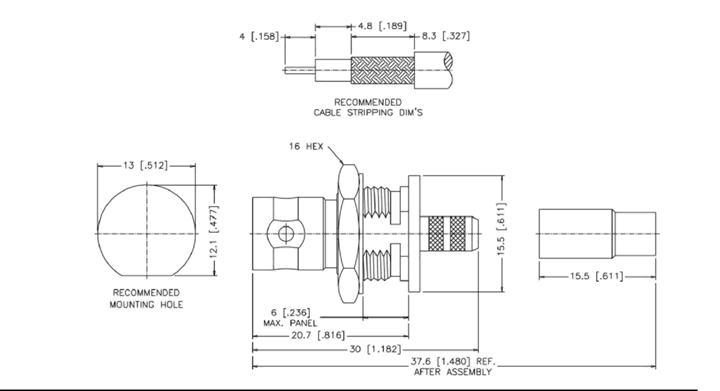

Schematic Drawing
Connex part number 112247 schematic
