 Connex Connector Product Specification Sheet
Part Number Add part number 112226 to your Quote. 112226
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible Cable
Description: Bulkhead Crimp Jack - Plenum Cable
Teflon/Captured

Specifications
Electrical
Cable Group 02    Cable Types: LMR200 / B7807A
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool A

Remark:  6.5 [.256] Max. panel thickness

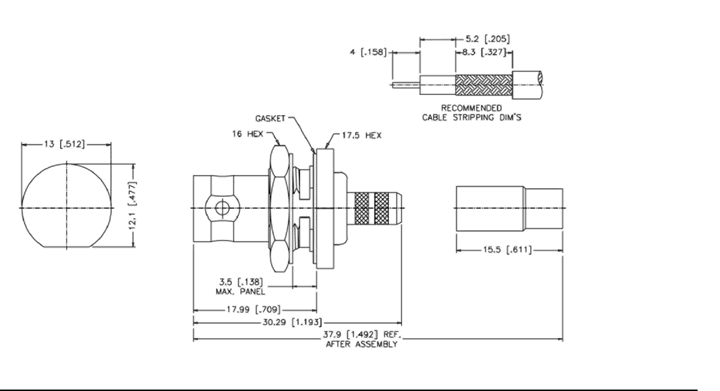

Schematic Drawing
Connex part number 112226 schematic
