 Connex Connector Product Specification Sheet
Part Number Add part number 112206 to your Quote. 112206
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible Cable
Description: Bulkhead Crimp Jack - Standard Cable
Delrin/ Noncaptured

Specifications
Electrical
Cable Group 01    Cable Types: 58 / 58A / 58C / 141 / 303 / UMR195 / B7806A
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool A

Remark:  3.5 [.138] Max. panel thickness

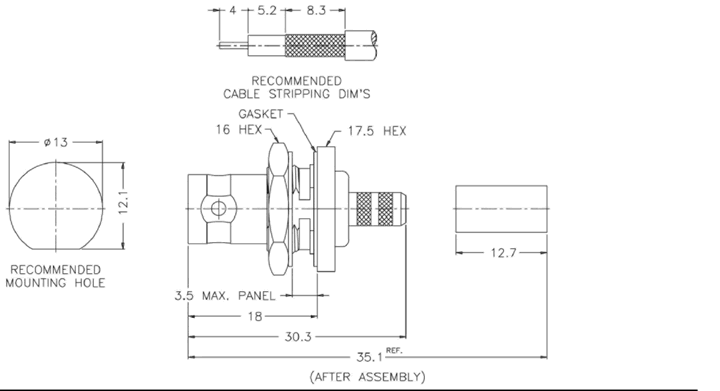

Schematic Drawing
Connex part number 112206 schematic
