 Connex Connector Product Specification Sheet
Part Number Add part number 112182 to your Quote. 112182
Family/Series: BNC Coaxial Connectors
Product Type: Right Angle Plug Crimp Attachments for Flexible Cable
Description: Right Angle Crimp/Crimp Plug - Standard Cable
Brass Shell

Specifications
Electrical
Cable Group 01    Cable Types: 58 / 58A / 58C / 141 / 303 / UMR195 / B7806A
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool A

Remark:  Crimp/Crimp Type

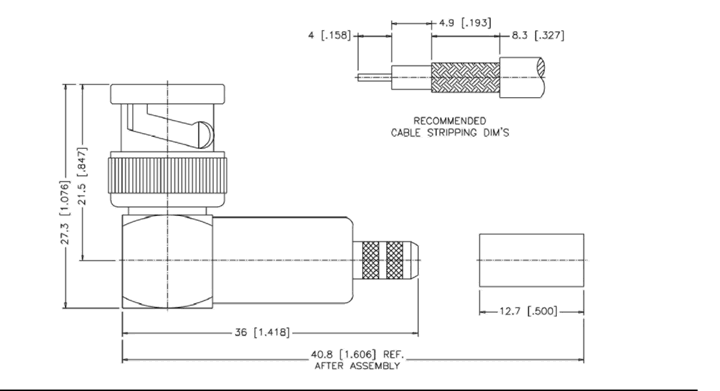

Schematic Drawing
Connex part number 112182 schematic
