 Connex Connector Product Specification Sheet
Part Number Add part number 112160 to your Quote. 112160
Family/Series: BNC Coaxial Connectors
Product Type: Jack Crimp Attachments for Flexible Cable
Description: Straight Crimp Jack - Miniature And Semi-Rigid Cable

Specifications
Electrical
Cable Group 05    Cable Types: 174 / 188A / 316 / B7805A
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool B

Remark:  With teflon sleeve, Hex crimp size .178"

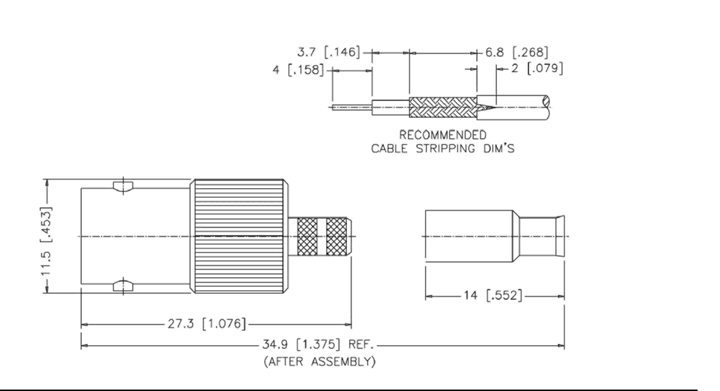

Schematic Drawing
Connex part number 112160 schematic
