 Connex Connector Product Specification Sheet
Part Number Add part number 112138 to your Quote. 112138
Family/Series: BNC Coaxial Connectors
Product Type: Plug Crimp Attachments for Flexible Cable
Description: Straight Crimp Plug - Pin-In-Pin - Miniature Cable
Diecast Shell

Specifications
Electrical
Cable Group 05    Cable Types: 174 / 188A / 316 / B7805A
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool B

Remark:  Hex. crimp size .128"

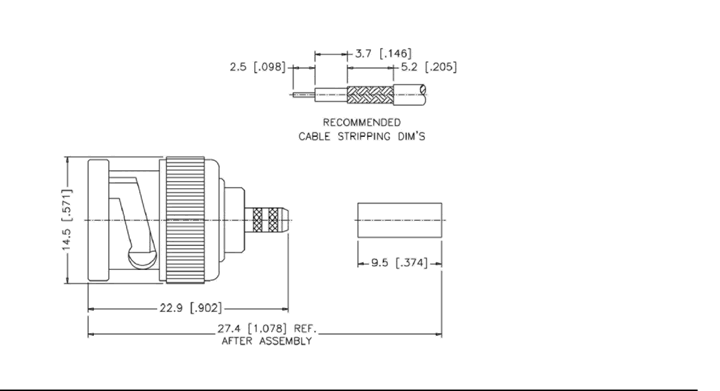

Schematic Drawing
Connex part number 112138 schematic
