 Connex Connector Product Specification Sheet
Part Number Add part number 112127 to your Quote. 112127
Family/Series: BNC Coaxial Connectors
Product Type: Plug Crimp Attachments for Flexible Cable
Description: Straight Crimp Plug - Captive Contact - Plenum Cable
Brass Shell

Specifications
Electrical
Cable Group 04    Cable Types: 59 / U PLENUM
Finish Nickel
Insulation Delrin
Impedance 75 ohms
Crimp Tool A

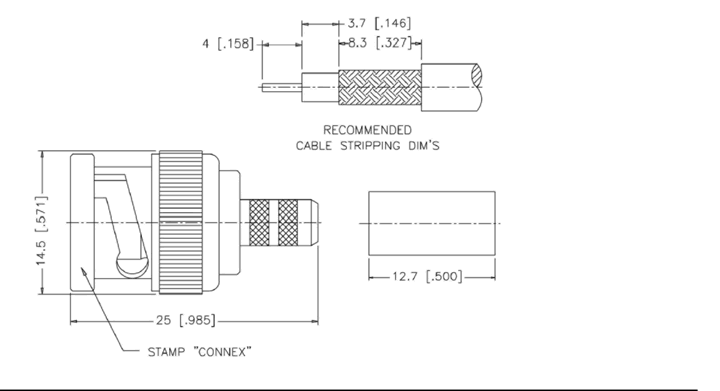

Schematic Drawing
Connex part number 112127 schematic
