 Connex Connector Product Specification Sheet
Part Number Add part number 112124 to your Quote. 112124
Family/Series: BNC Coaxial Connectors
Product Type: Plug Crimp Attachments for Flexible Cable
Description: Straight Crimp Plug - Captive Contact - Plenum Cable
Brass Shell

Specifications
Electrical
Cable Group 02    Cable Types: LMR200 / B7807A
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool A

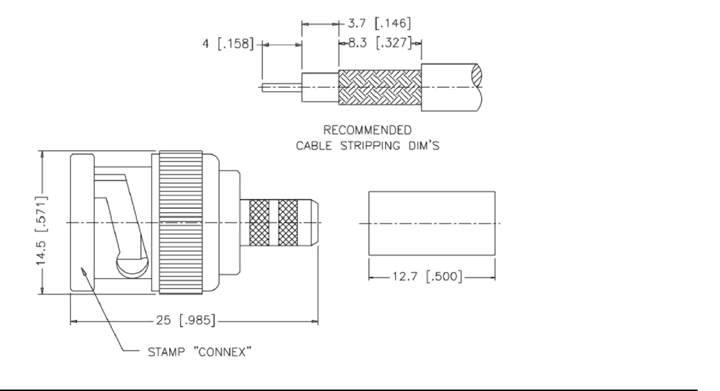

Schematic Drawing
Connex part number 112124 schematic
