 Connex Connector Product Specification Sheet
Part Number Add part number 272173 to your Quote. 272173
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Panel Receptacles
Description: Panel Jack Receptacles
Solder Contact, 1 INCH Flange

Specifications
Electrical
Cable Group N/A
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

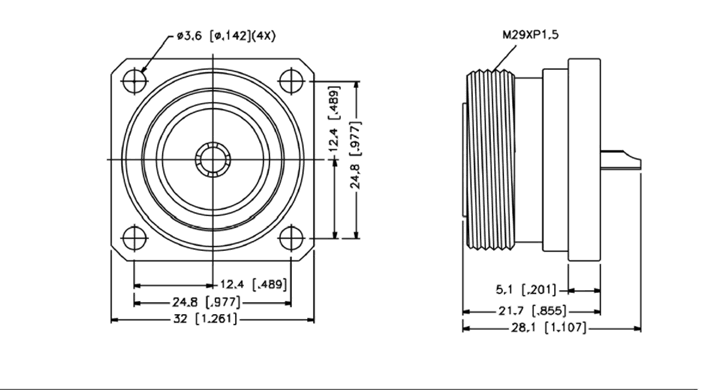

Schematic Drawing
Connex part number 272173 schematic
