Connex-Electronics.com
 Connex Connector Product Specification Sheet
Part Number Add part number 272172 to your Quote. 272172
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Straight Plugs
Description: Straight Crimp Plug - Flexible Cable

Specifications
Electrical
Cable Group 05    Cable Types: 174 / 188A / 316 / B7805A
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool B

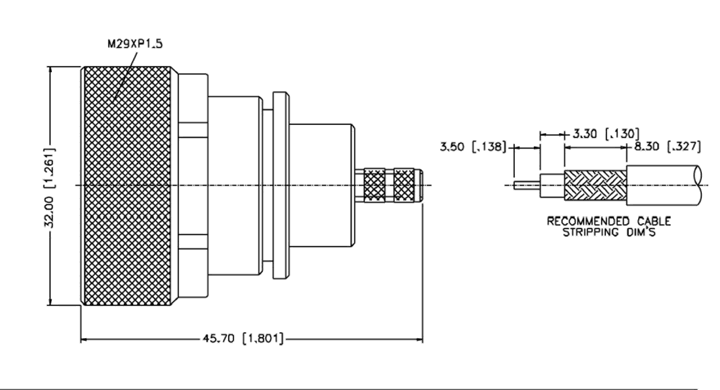

Schematic Drawing
Connex part number 272172 schematic
