Connex-Electronics.com
 Connex Connector Product Specification Sheet
Part Number272168
Family/Series:7/16 Coaxial Connectors
Product Type:7/16 Straight Jacks
Description:Straight Clamp Jack - Super Flex Cable
Helical

Specifications
Electrical
Cable Group7/8"
FinishSilver
InsulationTeflon
Impedance50 ohms
Crimp ToolN/A

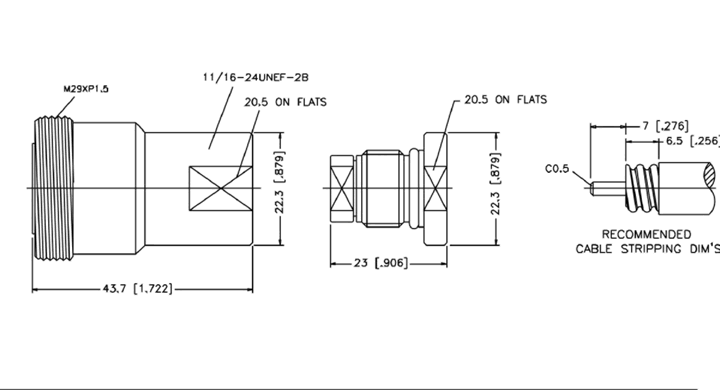

Schematic Drawing
Connex part number 272168 schematic
