 Connex Connector Product Specification Sheet
Part Number272166
Family/Series:7/16 Coaxial Connectors
Product Type:7/16 Right Angle plugs
Description:Right Angle Clamp Plug - Super Flex Cable
Helical

Specifications
Electrical
Cable Group7/8"
FinishSilver
InsulationTeflon
Impedance50 ohms
Crimp ToolN/A

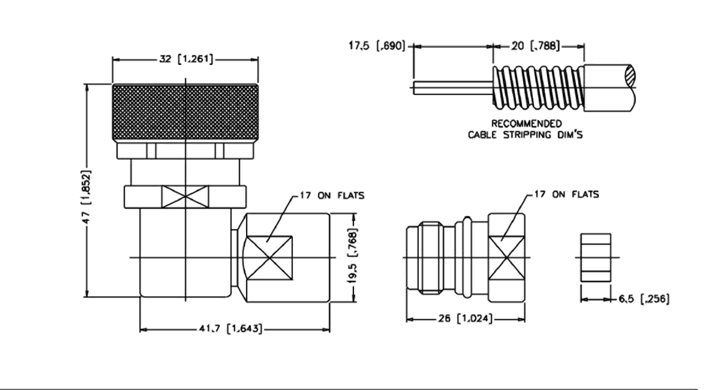

Schematic Drawing
Connex part number 272166 schematic
