 Connex Connector Product Specification Sheet
Part Number272162
Family/Series:7/16 Coaxial Connectors
Product Type:7/16 Bulkhead Jacks
Description:Bulkhead Clamp Jack - Corrugated Cable
Helical

Specifications
Electrical
Cable Group7/8"
FinishSilver
InsulationTeflon
Impedance50 ohms
Crimp ToolN/A

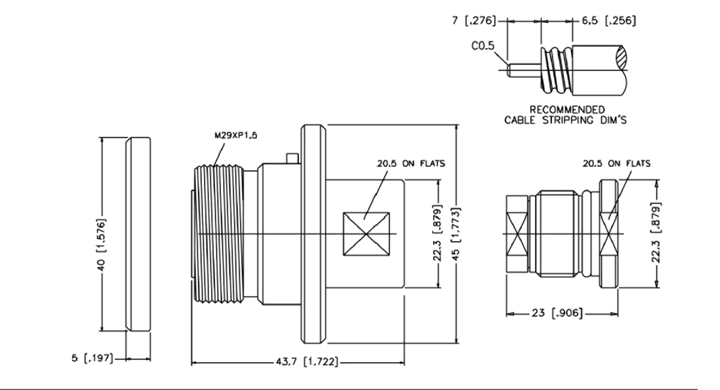

Schematic Drawing
Connex part number 272162 schematic
