 Connex Connector Product Specification Sheet
Part Number272160
Family/Series:7/16 Coaxial Connectors
Product Type:7/16 Bulkhead Jacks
Description:Bulkhead Clamp Jack - Corrugated Cable
Super Flex

Specifications
Electrical
Cable Group3/8"
FinishSilver
InsulationTeflon
Impedance50 ohms
Crimp ToolN/A

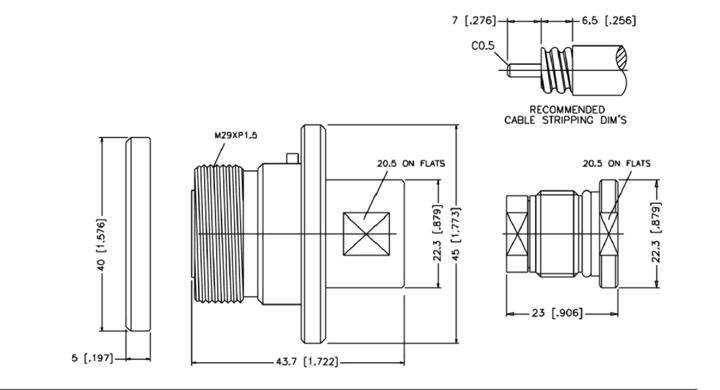

Schematic Drawing
Connex part number 272160 schematic
