 Connex Connector Product Specification Sheet
Part Number Add part number 272159 to your Quote. 272159
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Bulkhead Jacks
Description: Bulkhead Solder Jack - Semi-Rigid Cable

Specifications
Electrical
Cable Group 12    Cable Types: .250 Semi-Rigid
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

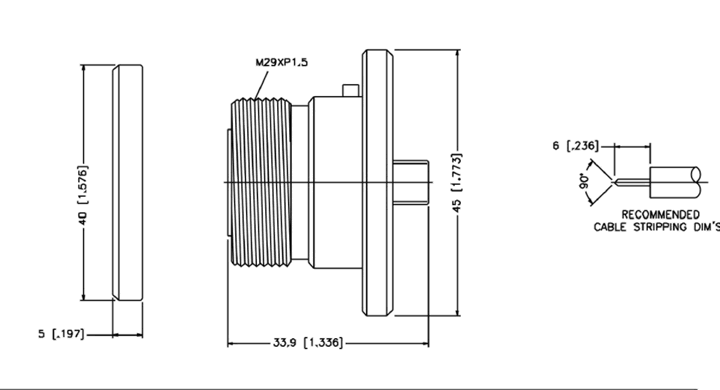

Schematic Drawing
Connex part number 272159 schematic
