 Connex Connector Product Specification Sheet
Part Number Add part number 272154 to your Quote. 272154
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Bulkhead Jacks
Description: Bulkhead Crimp Jack - Flexible Cable

Specifications
Electrical
Cable Group 07A    Cable Types: 214
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool D

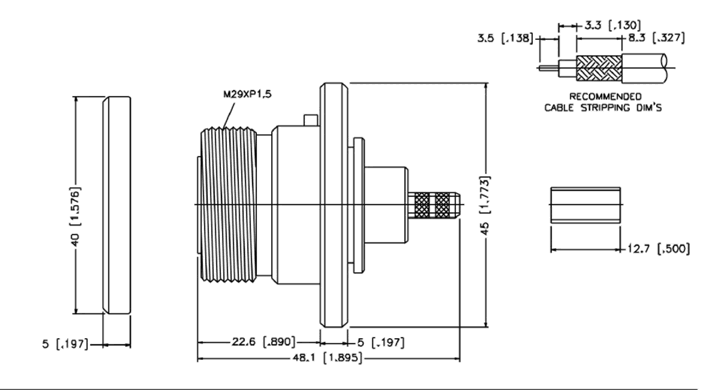

Schematic Drawing
Connex part number 272154 schematic
