 Connex Connector Product Specification Sheet
Part Number Add part number 272153 to your Quote. 272153
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Bulkhead Jacks
Description: Bulkhead Crimp Jack - Flexible Cable

Specifications
Electrical
Cable Group 07    Cable Types: 8 / 8A / 213 / 393
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool D

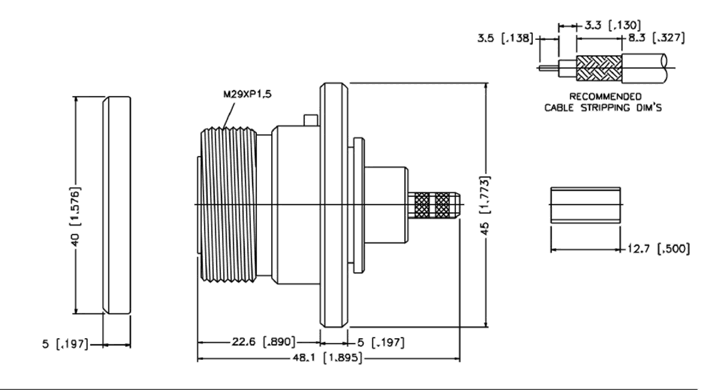

Schematic Drawing
Connex part number 272153 schematic
