 Connex Connector Product Specification Sheet
Part Number Add part number 272151 to your Quote. 272151
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Bulkhead Jacks
Description: Bulkhead Crimp Jack - Flexible Cable

Specifications
Electrical
Cable Group 01    Cable Types: 58 / 58A / 58C / 141 / 303 / UMR195 / B7806A
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool A

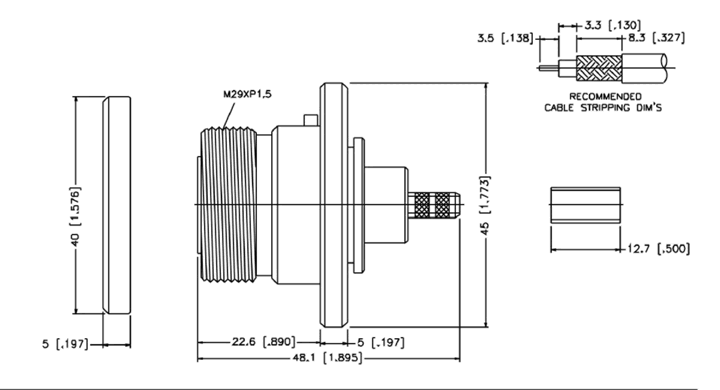

Schematic Drawing
Connex part number 272151 schematic
