 Connex Connector Product Specification Sheet
Part Number272148
Family/Series:7/16 Coaxial Connectors
Product Type:7/16 Straight Jacks
Description:Straight Clamp Jack - Super Flex Cable
Super Flex

Specifications
Electrical
Cable Group3/8"
FinishSilver
InsulationTeflon
Impedance50 ohms
Crimp ToolN/A

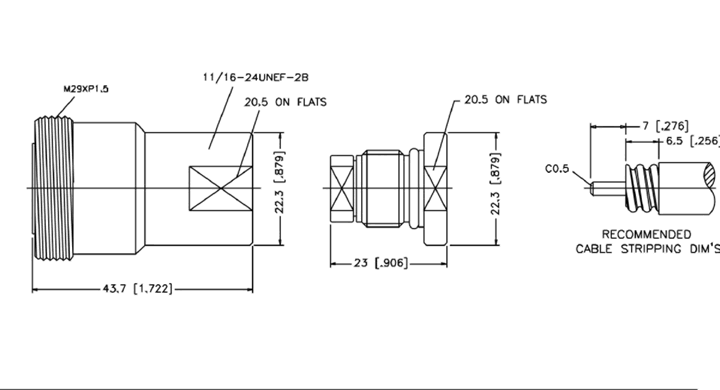

Schematic Drawing
Connex part number 272148 schematic
