 Connex Connector Product Specification Sheet
Part Number Add part number 272145 to your Quote. 272145
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Straight Jacks
Description: Straight Crimp Jack - Flexible Cable

Specifications
Electrical
Cable Group 17    Cable Types: LMR600
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool .610 HEX

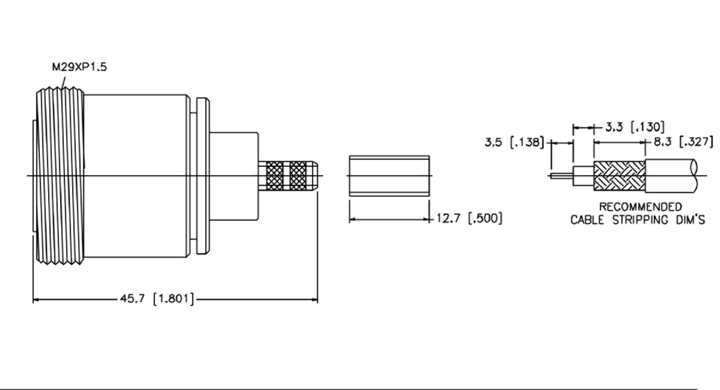

Schematic Drawing
Connex part number 272145 schematic
