 Connex Connector Product Specification Sheet
Part Number272143
Family/Series:7/16 Coaxial Connectors
Product Type:7/16 Straight Jacks
Description:Straight Crimp Jack - Flexible Cable

Specifications
Electrical
Cable Group07A   Cable Types: 214
FinishSilver
InsulationTeflon
Impedance50 ohms
Crimp ToolD

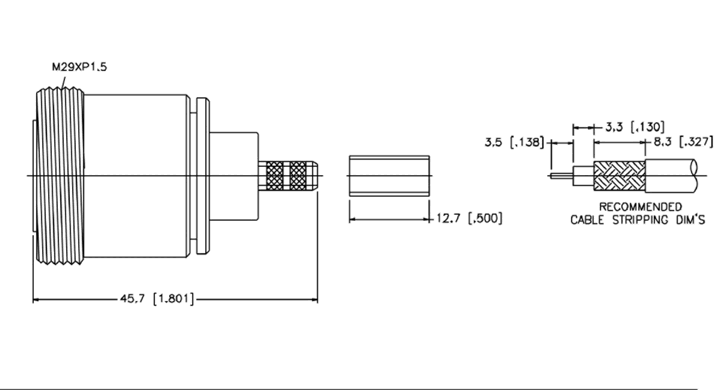

Schematic Drawing
Connex part number 272143 schematic
