 Connex Connector Product Specification Sheet
Part Number Add part number 272141 to your Quote. 272141
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Straight Jacks
Description: Straight Crimp Jack - Flexible Cable

Specifications
Electrical
Cable Group 01A    Cable Types: 55 / 142 / 223 / 400
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool A

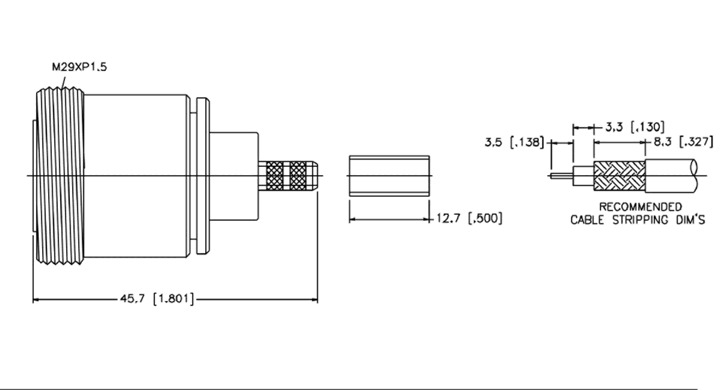

Schematic Drawing
Connex part number 272141 schematic
