 Connex Connector Product Specification Sheet
Part Number Add part number 272132 to your Quote. 272132
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Panel Receptacles
Description: Panel Plug Receptacles
Solder Contact

Specifications
Electrical
Cable Group N/A
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

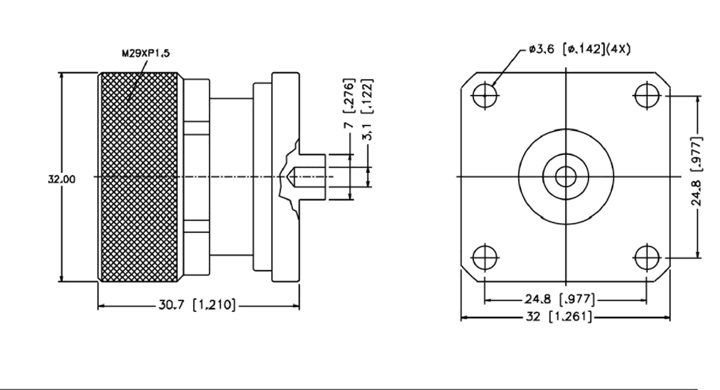

Schematic Drawing
Connex part number 272132 schematic
