 Connex Connector Product Specification Sheet
Part Number Add part number 272117 to your Quote. 272117
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Right Angle plugs
Description: Right Angle Solder Plug - Semi-Rigid Cable

Specifications
Electrical
Cable Group 10    Cable Types: .141 Semi-Rigid / 402/U
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

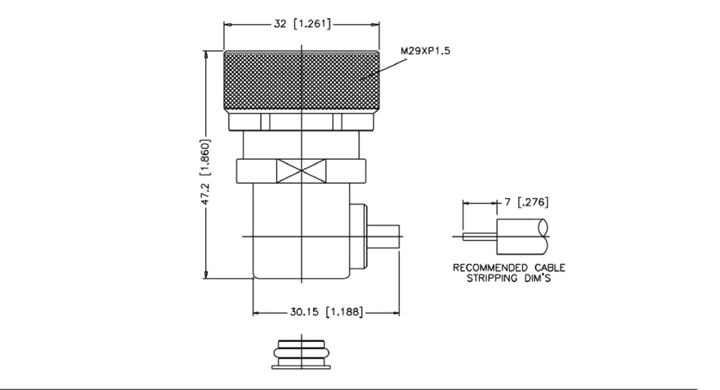

Schematic Drawing
Connex part number 272117 schematic
