 Connex Connector Product Specification Sheet
Part Number Add part number 272115 to your Quote. 272115
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Right Angle plugs
Description: Right Angle Crimp Plug - Flexible Cable

Specifications
Electrical
Cable Group 07C    Cable Types: B9913 / LMR400 / B7810A / B8214
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool D

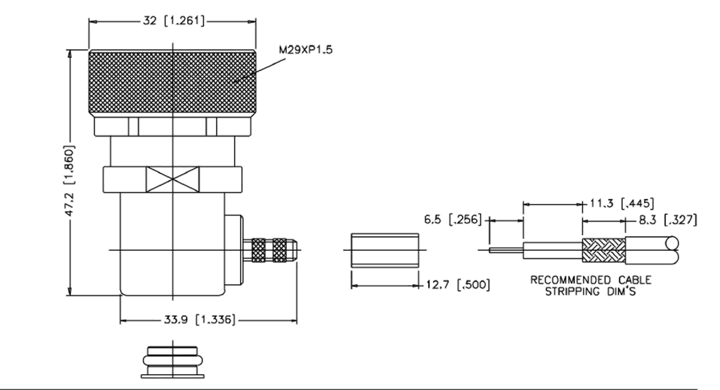

Schematic Drawing
Connex part number 272115 schematic
