 Connex Connector Product Specification Sheet
Part Number272113
Family/Series:7/16 Coaxial Connectors
Product Type:7/16 Right Angle plugs
Description:Right Angle Crimp Plug - Flexible Cable

Specifications
Electrical
Cable Group07   Cable Types: 8 / 8A / 213 / 393
FinishSilver
InsulationTeflon
Impedance50 ohms
Crimp ToolD

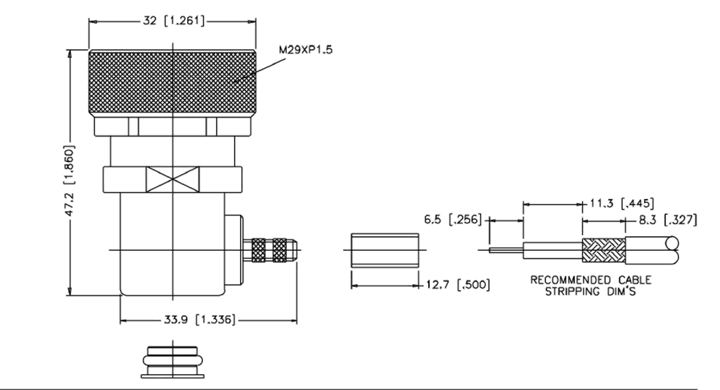

Schematic Drawing
Connex part number 272113 schematic
