 Connex Connector Product Specification Sheet
Part Number Add part number 272109 to your Quote. 272109
Family/Series: 7/16 Coaxial Connectors
Product Type: 7/16 Straight Plugs
Description: Straight Solder Plug - Semi-Rigid Cable

Specifications
Electrical
Cable Group 10    Cable Types: .141 Semi-Rigid / 402/U
Finish Silver
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

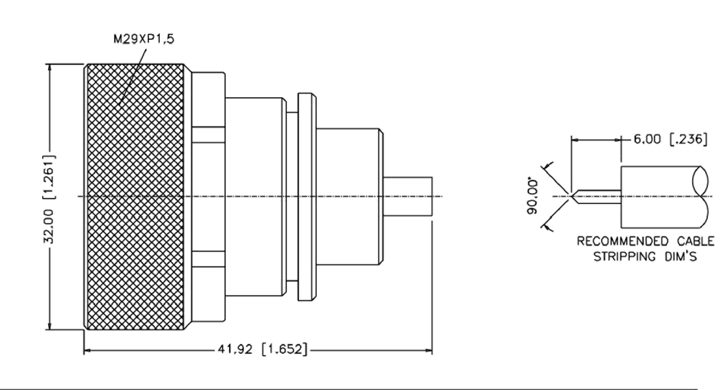

Schematic Drawing
Connex part number 272109 schematic
