 Connex Connector Product Specification Sheet
Part Number272103
Family/Series:7/16 Coaxial Connectors
Product Type:7/16 Straight Plugs
Description:Straight Crimp Plug - Flexible Cable

Specifications
Electrical
Cable Group01   Cable Types: 58 / 58A / 58C / 141 / 303 / UMR195 / B7806A
FinishSilver
InsulationTeflon
Impedance50 ohms
Crimp ToolA

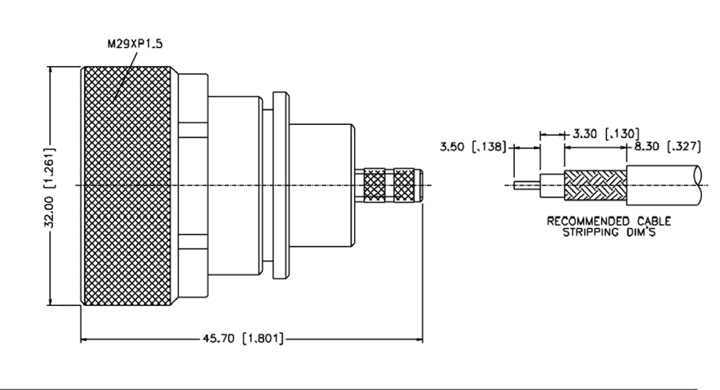

Schematic Drawing
Connex part number 272103 schematic
