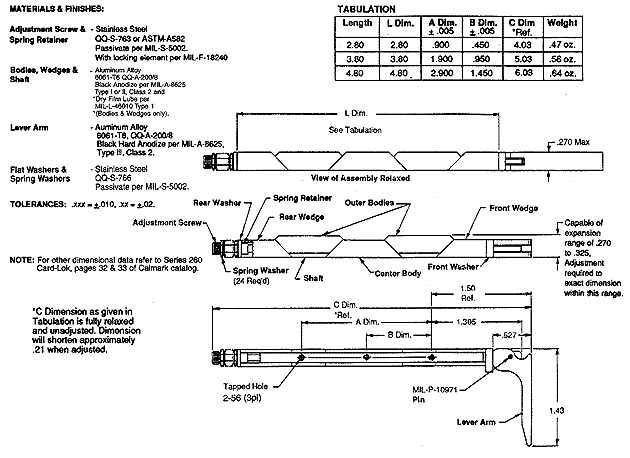

Series LE260 - "Card-Lok"Retainer (Extracting/Lever-Lok)

Calmark Series LE260 - "Card-Lok" Retainer (Extracting/Lever-Lok)

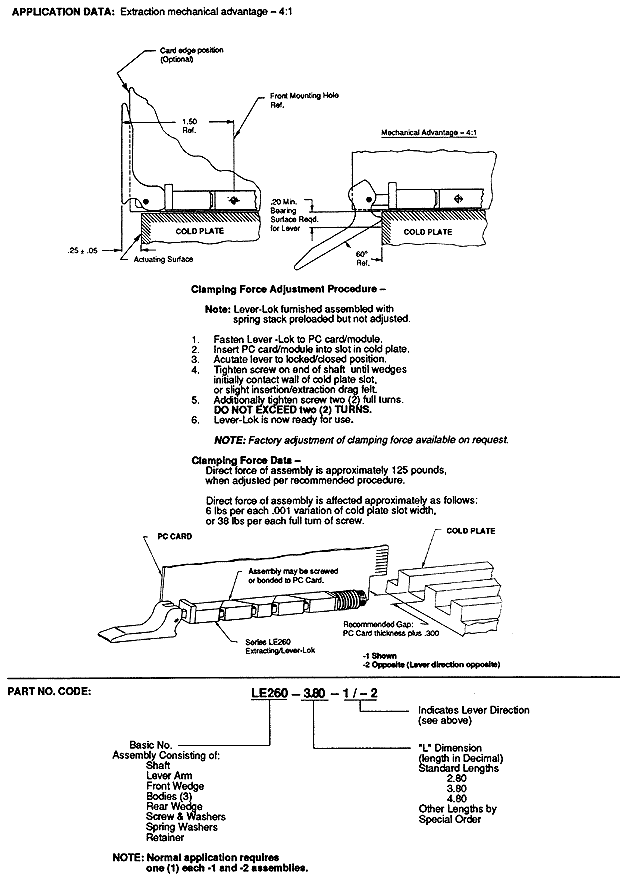

Calmarkoffers the Series LE260 Extracting/Lever-Lok ("Card-Lok") retainerfor cold plate/heat-exchanger applications. This totally new and unique designprovides the significant feature of PC board extraction in addition to toolfree lever action locking. The Series LE260 provides visual indication ofaccurate, repeatable locking to a preset clamping force.

FEATURES:

  • Safe and easy PC boardextraction with 4:1 mechanical advantage.
  • Tool free actuation.
  • Visual indication of locked orunlocked status.
  • Preset and adjustable clampingforce.
  • Maintained wedge and bodyalignment for easy insertion.
  • Special lengths, finishes orother design variations available on request.
Calmark Series LE260 - "Card-Lok" Retainer (Extracting/Lever-Lok)
Calmark Series LE260 - "Card-Lok" Retainer (Extracting/Lever-Lok)
