Series L260 - "Card-Lok"Retainer (Lever-Lok)

Calmark Series L260 - "Card-Lok" Retainer (Lever-Lok)
Calmarkoffers the Series L260 Lever-Lok ("Card-Lok") retainer for coldplate/heat-exchanger applications. This totally new and unique design providestool free, lever action locking on the advance design Series 260 Card-Lok. TheSeries L260 provides visual indication of accurate, repeatable locking to apreset clamping force.

FEATURES:

  • Tool free actuation.
  • Visual indication of locked orunlocked status.
  • Preset and adjustable clampingforce.
  • Clamping force consistentlyrepeated.
  • Maintains wedge and bodyalignment for easy installation.
  • Special lengths, finishes orother design variations available on request.

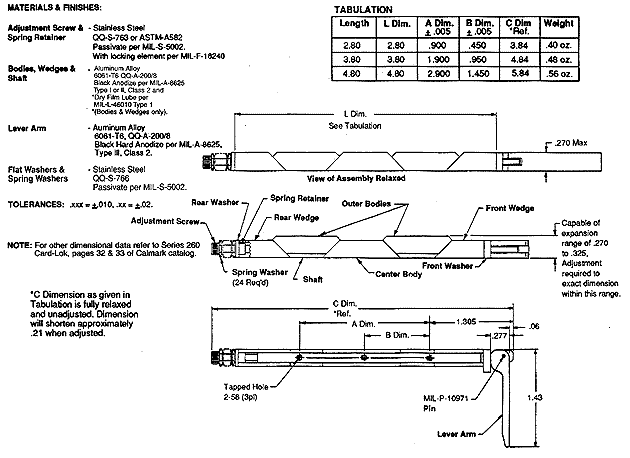

Calmark Series L260 - "Card-Lok" Retainer (Lever-Lok)

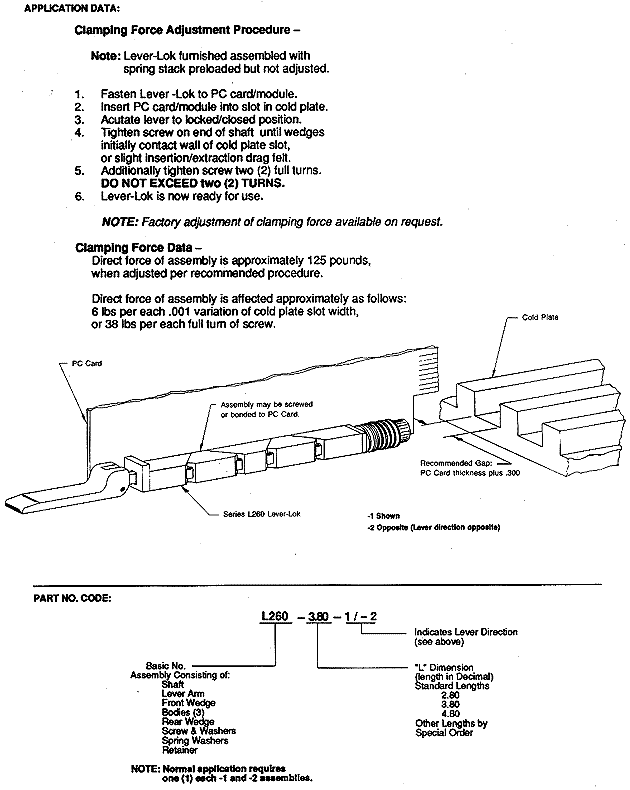

Calmark Series L260 - "Card-Lok" Retainer (Lever-Lok)
