Series 240 - "Card-Lok"Retainer (Cold Plate)

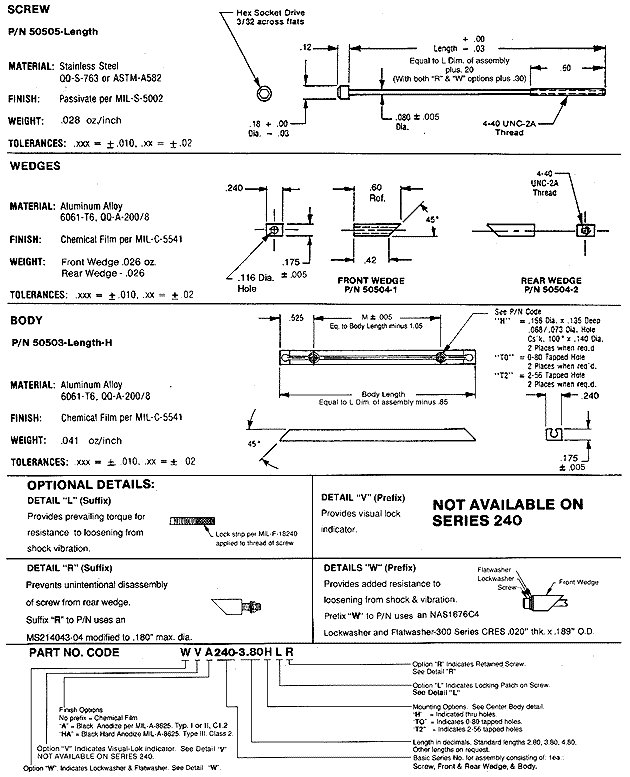

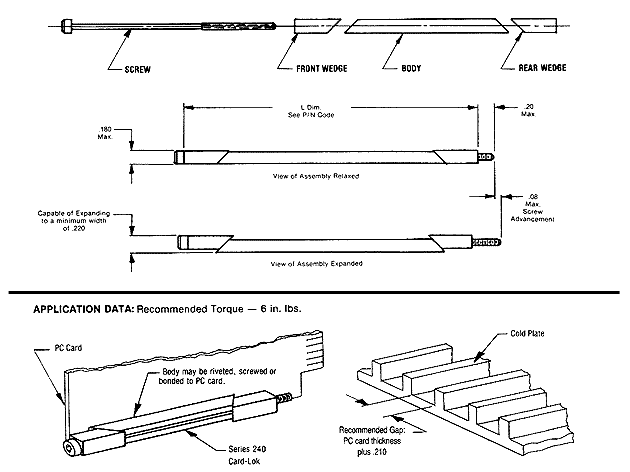

Calmark Series 240 - "Card-Lok" Retainer (Cold Plate)
Calmarkoffers the Series 240 "Card-Lok" retainer for cold plate - heatexchanger applications. A narrow configuration PC card retainer that providesmaximum heat sinking efficiency for high density card spacing.

FEATURES:

  • Narrow width allows minimumcard spacing..
  • Positive locking providesmaximum reliability.
  • Maximum thermal transfer.
  • Maximum resistance to shock andvibration.
  • Zero insertion and extractionforces.
  • Special length, finishes orother design variations available on request.
Calmark Series 240 - "Card-Lok" Retainer (Cold Plate)
Calmark Series 240 - "Card-Lok" Retainer (Cold Plate)
