Series 107-20 Inserter-Extractor(Locking)


Calmark Series 107-20 Inserter-Extractor (Locking)

Calmark offers the Series 107-20 Card Inserter-Extractor forefficient insertion and extraction of PC cards in high densityconnector-contact and multiple connector applications, with the added featureof locking.

FEATURES:

  • Lever action overcomesinsertion and extraction forces in excess of 100 lbs.
  • Positive locking featureprotects against card "walkout".
  • Actuates from a simple"U" channel form.
  • No chamferrequired on corner of card.
  • Strong glassfilled nylon material.
  • Available in colors for coding.
  • Generous areafor hot stamp marking.

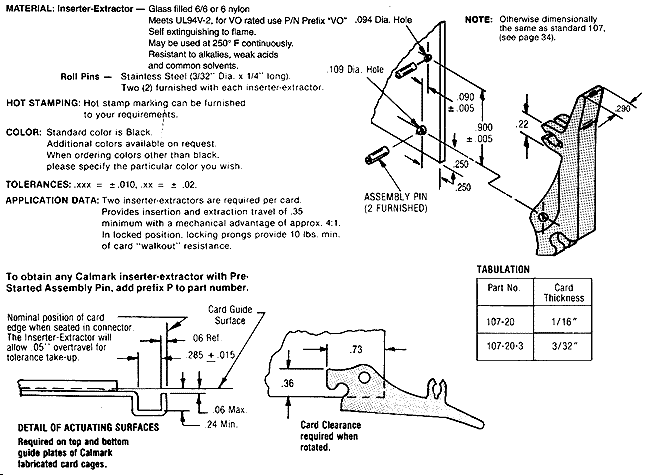

Calmark Series 107-20 Inserter-Extractor (Locking)
